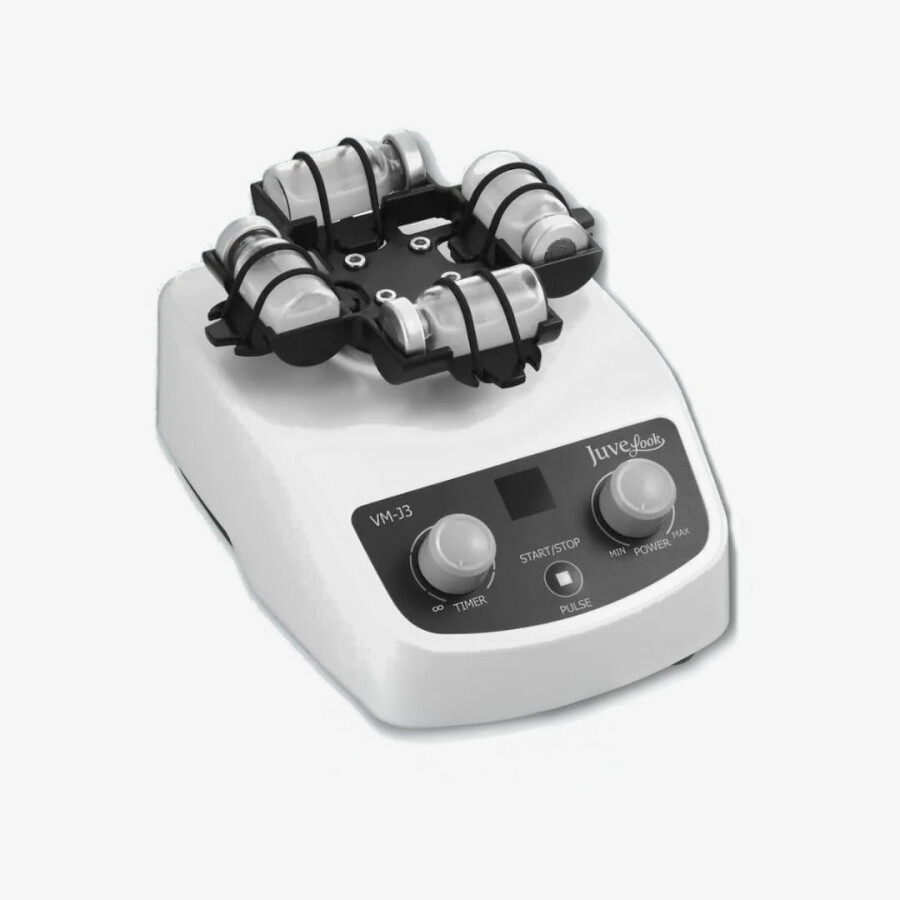

The Vortex III Laboratory Shaker is a professional device for preparing aesthetic medicine products, now with an improved design and greater functionality. Its main purpose is to mix products such as Juvelook and Lenisna effectively and precisely in a clinic setting, using orbital motion technology.
Advanced functionality
The Vortex III shaker is designed specifically for working with PDLLA products, ensuring optimal preparation of the substance before application. A permanently mounted platform with four mounting points allows you to prepare a larger amount of product at once, significantly speeding up work in the clinic. The device spins any number of vials without the need for a counterweight, making it highly practical for everyday use. A multi-function switch allows both continuous and pulse operation.
Modern technology and specifications
The new model features a more powerful 24W brushless DC motor, giving more effective mixing across a speed range of 1600 to 3600 rpm. An electronic timer allows precise control of run time in continuous mode or in intervals of 3, 5, 10, 15 and up to 30 minutes. The 4 mm orbital motion ensures even mixing, and stepless speed control lets you adjust the intensity to the type of product.
Ergonomics and practicality
The powder-coated aluminium construction is designed for comfortable use in cosmetology and dermatology clinics. Compact dimensions of 134 x 190 x 140 mm and a weight of 2.63 kg make it easy to place on a workstation. An intuitive control panel with an LED display, time and power dials and a START/STOP button makes operation simple and effective. An anti-vibration mat adds stability during use.
Technical parameters
- Model, VM-J3
- Motion type, orbital motion, 4.0 mm orbit diameter
- Speed range, 1600-3600 rpm (+/- 150 rpm)
- Speed control, stepless
- Operating modes, continuous, timed or pulse
- Timer, continuous mode or 3, 5, 10, 15, up to 30 minutes
- Motor, brushless DC motor, 24W
- Maximum load, 0.5 kg
- Device dimensions, 134 x 190 x 140 mm
- Net weight, 2.63 kg
- Power supply, AC 100-240V, 50/60Hz
Materials and build
- Construction, powder-coated aluminium

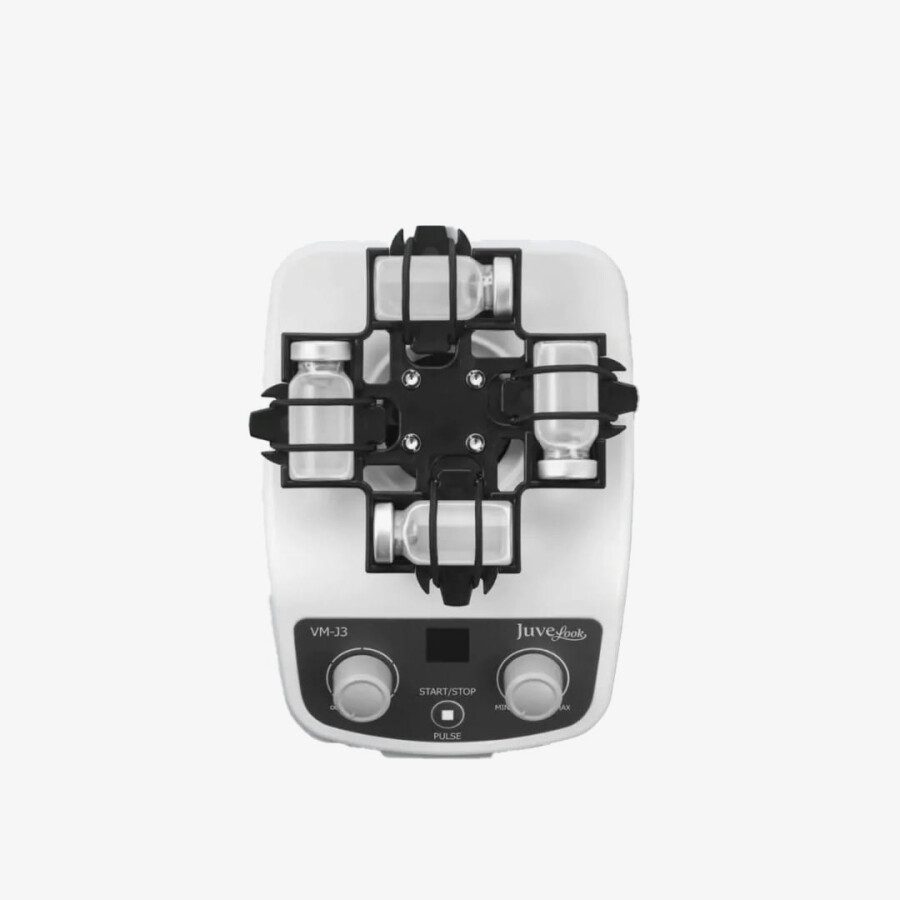

- Platform, fixed platform with 4 mounting points

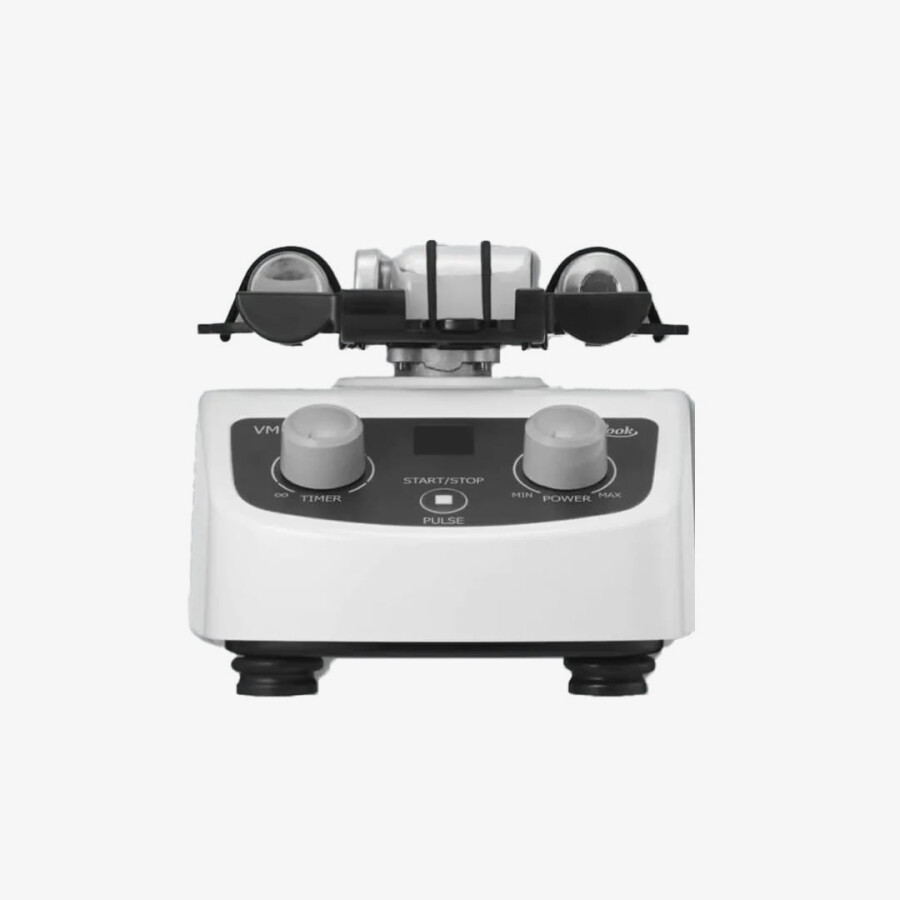

- Control panel, LED display, control dials, START/STOP/PULSE button
- Anti-vibration mat, included for added stability
Safety and certifications
- Operating conditions, temperature 5°C-40°C, humidity below 80%
- Construction designed for safe use
- Control system, automatic stop after the set time
- Anti-vibration mat for greater stability during use
- Operating conditions in line with clinic standards
Instructions for use
- unpack and check the set is complete
- place the device on a stable surface with the anti-vibration mat
- connect the AC-DC power supply to the device and the mains
- correctly install the vials on the platform as instructed
- switch on the device using the switch at the back of the housing
- set the required speed with the Power dial
- set the run time with the Timer dial
- press START/STOP to begin mixing
- wait for the cycle to finish (audible signal and "00" on the display)
Warranty and service
- Manufacturer's warranty on the device
- Technical support available from the distributor
- English user manual included

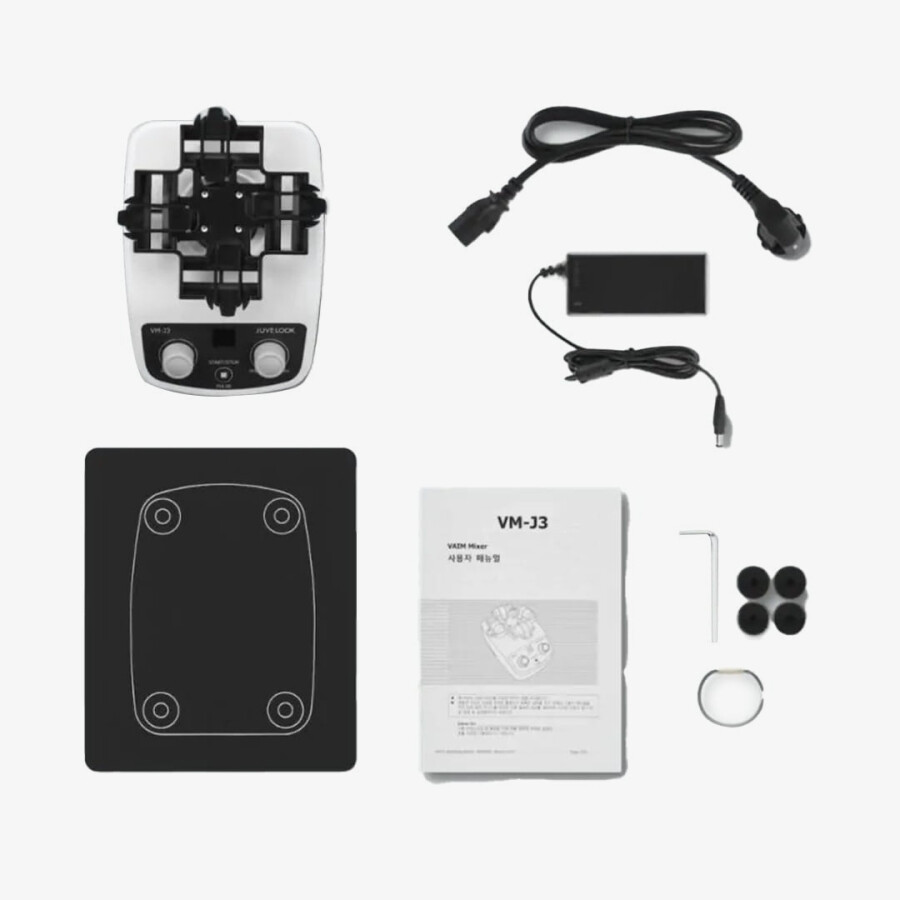

Box contents
- Vortex III shaker with 4-vial platform
- Anti-vibration mat
- AC-DC power supply with power cable
- User manual (in English)
- Package size: 190 x 250 x 215 mm, gross weight 2.90 kg
